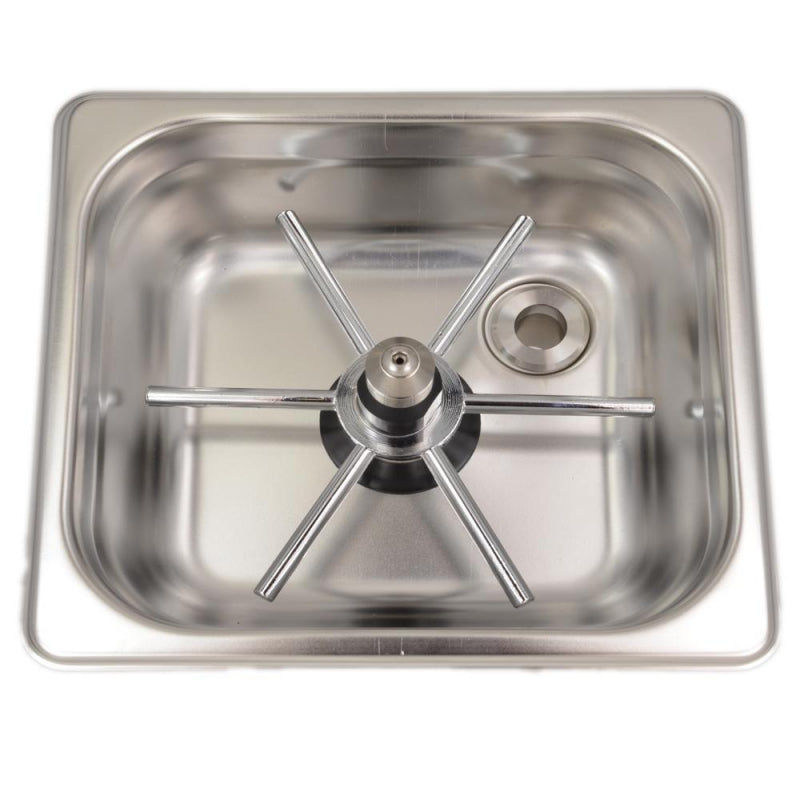

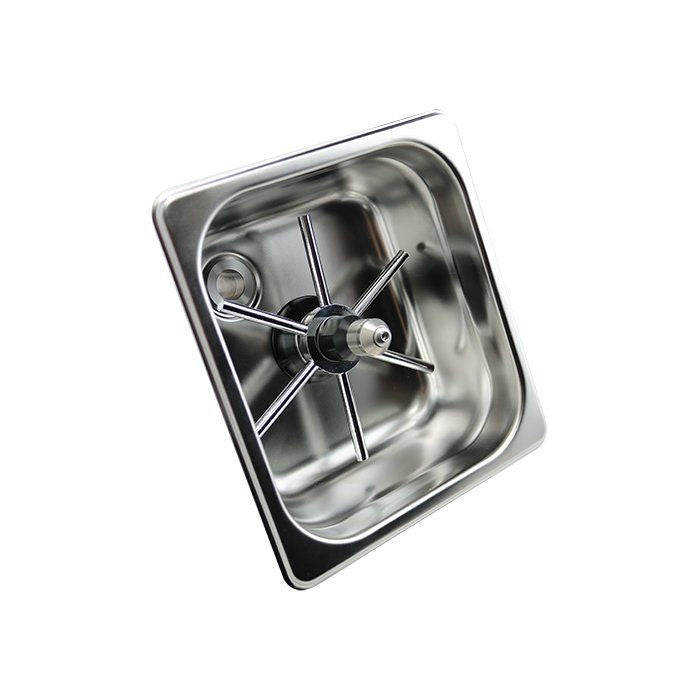

Rhino Recessed Jug Rinser with Spin Jet - 150mm (Square)
The Rhino Coffee Gear Square Pitcher Rinser has been designed to fit into the countertop of cafes, coffee bars, and other hospitality environments. This rinser features a star design and a Rhino Spinjet Valve which sprays and spins at the same time for an effective clean. At approx. 150mm square, this is the most compact Jug/Glass rinser in the Rhino range and is the perfect option for smaller cafes and coffee bars.
This Rhino Spinjet Valve offers water savings of up to 30% compared to other rinser valves.
Features:
- The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, and milk and other residues that can often be difficult to clean.
- Compact design is perfect for smaller countertop spaces.
- Easy installation.
- Actuator Star design helps to prevent the build-up of milk residue and is easy to clean.
- Stainless Steel construction.
- No sharp edges; corners are rounded for safety.
Specifications:
- Dimensions: 175mm (W) x 159mm (L) x 62mm (D) approx.
(Depth with fittings: 110mm) - Materials: Stainless Steel
- Drain Hose: 25mm/1" size (not included)
- Flow Rate: 120 lph approx.
Standard Inclusions:
- 1 x Pitcher
- 1 x Spinjet Spray Mechanism with 123 mm stainless steel activation star
- 1 x John Guest Hose Adapter
- 1 x Drain Outlet
Depth Requirements: We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.
Installation Notes:
- Due to slight variations in manufacturing design and the varying requirements of countertop materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into worktop surface. The manufacturer does not take responsibility for installation cut out error and provides sizes and dimensions as a layout guide only.
